以东西南北红绿灯为例

其实比较简单，不多说了，就是使用PLC S7-200的顺控指令并行分支，一个分支执行东西红绿灯，另一个执行南北，最后汇总转移。
为什么说是伪多线程？
因为最后需要汇总转移，两个分支在最后具有一定耦合性，并不能说完全相互独立。

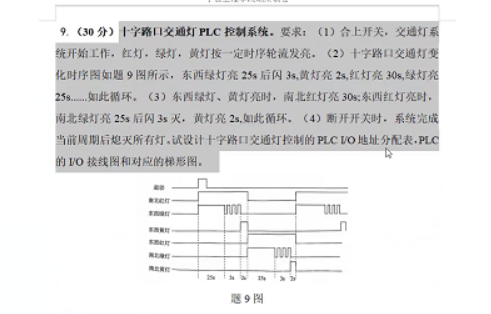

控制大意如下

查看详细图片

红绿灯闪烁部分可以看看

plaintext
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
TITLE=PROGRAM COMMENTS
Network 1 // Network Title
// Network Comment
LD     I0.0
S      S0.0, 1
Network 2
LD     I0.0
O      M0.0
AN     I0.1
=      M0.0
Network 3
LSCR   S0.0
Network 4
LD     M0.0
SCRT   S0.1
SCRT   S0.2
Network 5
SCRE
Network 6
LSCR   S0.1
Network 7
LD     SM0.0
TON    T37, 250
Network 8
LDN    T37
=      M0.3
Network 9
LD     T37
SCRT   S0.3
Network 10
SCRE
Network 11
LSCR   S0.3   //闪烁部分
Network 12
LD     SM0.0
TON    T38, 30
Network 13
LD     M0.0
AN     T39
TON    T40, 5
Network 14
LD     T40
TON    T39, 5
Network 15
LD     T40
AN     T38
=      M0.1
Network 16
LD     T38
SCRT   S0.4
Network 17
SCRE
Network 18
LSCR   S0.4
Network 19
LD     SM0.0
TON    T41, 20
Network 20
LDN    T41
=      Q0.1
Network 21
LD     T41
TON    T42, 300
Network 22
LDN    T42
=      Q0.2
Network 23
SCRE
Network 24
// 南北信号灯
LSCR   S0.2
Network 25
LD     M0.0
TON    T43, 300
Network 26
LDN    T43
=      Q0.5
Network 27
LD     T43
SCRT   S0.5

Network 28
SCRE
Network 29
LSCR   S0.5
Network 30
LD     M0.0
TON    T44, 250
Network 31
LDN    T44
=      M0.2
Network 32
LD     T44
SCRT   S0.6
Network 33
SCRE
Network 34
LSCR   S0.6

Network 35
LD     SM0.0
TON    T45, 30

Network 36
LD     M0.0
AN     T46
TON    T47, 5

Network 37
LD     T47
TON    T46, 5

Network 38
LD     T47
AN     T45
=      M0.4

Network 39
LD     T45
SCRT   S0.7

Network 40
SCRE
Network 41
LSCR   S0.7

Network 42
LD     SM0.0
TON    T47, 20

Network 43
LDN    T47
=      Q0.4

Network 44
SCRE
Network 45


LD     S0.7
A      S0.4
AN     I0.1
R      S0.7, 1
R      S0.4, 1
S      S0.0, 1
Network 46
LD     M0.3
O      M0.1
=      Q0.0
Network 47

LD     M0.2
O      M0.4
=      Q0.3

当然也在github上开源的，直接下载下来，看梯形图更方便。
